The world’s first universal programmer with 10Gbps 10-Gigabit Ethernet communication.
Ultra-fast and ultra-compact universal programmer supporting a wide range of devices.
Flash, MCU, UFS, eMMC, SSD, CPLD, FPGA, PMIC and other programmable devices.
Digital I/O clock frequency up to 200 MHz.
Built-in optional high-capacity storage: 256GB / 512GB / 1TB, with a bandwidth of 2GB/s.
1GB programming cache delivering 12.8GB/s bandwidth.
Maximum programming speed up to 400MB/s (HS400 mode supported for eMMC).

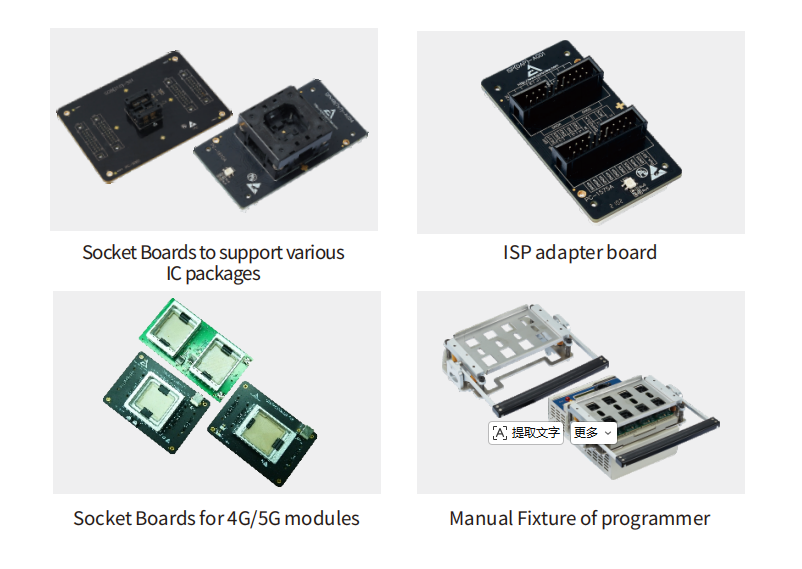

Flexible socket card design, supporting both offline and in-circuit programming.
High-speed data transfer via USB 3.2 Gen1 and dual 10Gbps Ethernet ports.
Backward compatible with AP8000 and AP8000H.
Supports low-power devices with 0.8V Vcc.
Asynchronous programming supported.
Single unit enables simultaneous programming of multiple chips.
Supports multi-unit cascading to achieve combined programming with pipeline throughput.
Integrated secure programming functions.
Acroview technology
国家级专精特新小巨人企业
-
The AP8000 V2 is Acroview’s new-generation universal programming system. It inherits the outstanding strengths of the industry benchmark AP8000, including broad chip compatibility, ultra-high programming speed and exceptional reliability. Adopting an FPGA chipset-based architecture, it delivers high-speed I/O and high-precision voltage parameters. With a clock frequency up to 200 MHz, it provides high-speed programming solutions for all programmable devices.
Feature functions -
Model AP8000V2 Communication Interface USB 3.2 Gen1 / Dual 10Gbps Ethernet Ports (Cascading Supported) High-capacity high-speed local data storage Optional capacities:256GB / 512GB / 1TB; bandwidth up to 2GB/s High-speed data cache (Cache) Capacity: 2GB, bandwidth up to 12.8GB/s Signal Rate ≥200MHz Number of Programming Signals SG8000V2-H:208个((10+8\*2)\*8)
SG8000V2:104个((10+8\*2)\*4)Programming Speed Up to 400MB/s (eMMC HS400); higher programming speeds available for UFS. Synchronous / Asynchronous Modes Supports both synchronous and asynchronous programming modes. Supports various chip packages Identical to the SG8000 platform, supporting all chip package types. Number of Parallel Programming Channels (Per Unit) SG8000V2-H:Gang8/Gang16
SG8000V2:Gang4/Gang8Flexible Networking Topologies Cascading (Max. 32 Units), Star Topology, Mixed Topology Programming Power Supply Max total power per unit: 36W
Three independent programming power rails per site: VCP / VPP1 / VPP2
Max power per single site: 12.2W (Total power of VCP, VPP1 and VPP2 for one site)
Specifications for VCP & VPP1: Voltage range 0.8V ~ 3.6V, max current 1ASupported Chip Types UFS, eMMC, eMCP, MCU/MPU, FPGA, CPLD, Nand/Nor Flash, SPI-memory, EEPROM and other programmable chips Programming Interface Types Supported I2C, SPI, PMBus, JTAG, SWD, UART, BDM, Swire, HyperBus, Xccela, eMMC, UFS Power Consumption Power consumption range: 20W minimum to 60W maximum Size SG8000V2-H:198X199X156mm
SG8000V2:116X165X35mmOperating Voltage 100-240VAC (50/60Hz) Operating Temperature 5~45℃ Certification CE Certification
